系統類型 Passive 12”, two-way, bass-reflex

Maximum SPL Output 123dB (Continuous), 129dB (Peak)

頻率范圍 (-10dB) 41hz - 20khz

Frequency Response (-3 dB) 57hz - 20khz

靈敏度 94dB

系統額定功率 3200W Peak, 1600W Program, 800W Continuous

標稱阻抗 8 Ohm

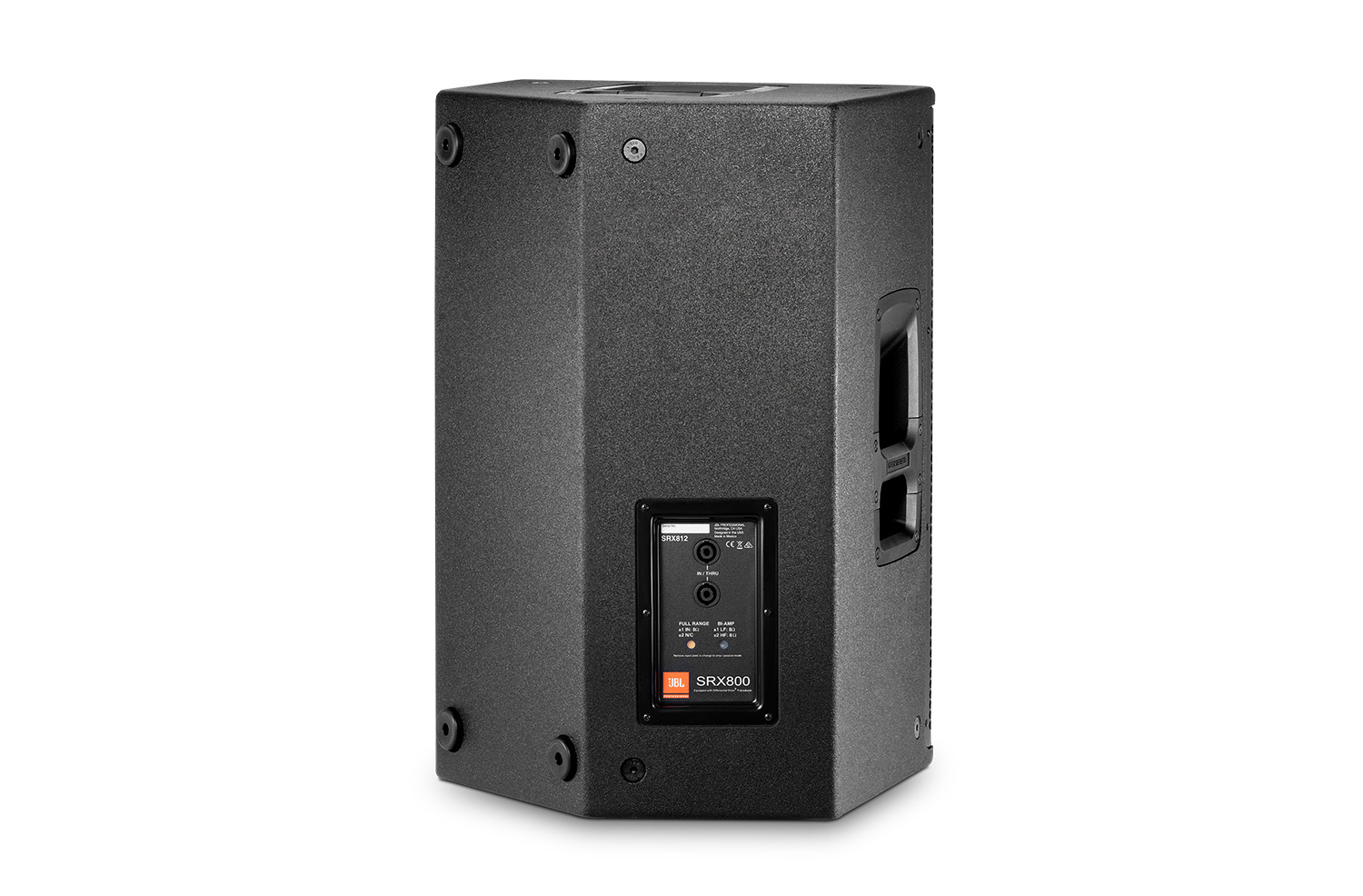

輸入通道 NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes Passive/Bi-Amp

低頻驅動單元 2272H

HF 驅動程序 2432H

覆蓋范圍 90 x 50

分頻點 1.9khz

Enclosure 18mm Duraflex coated plywood

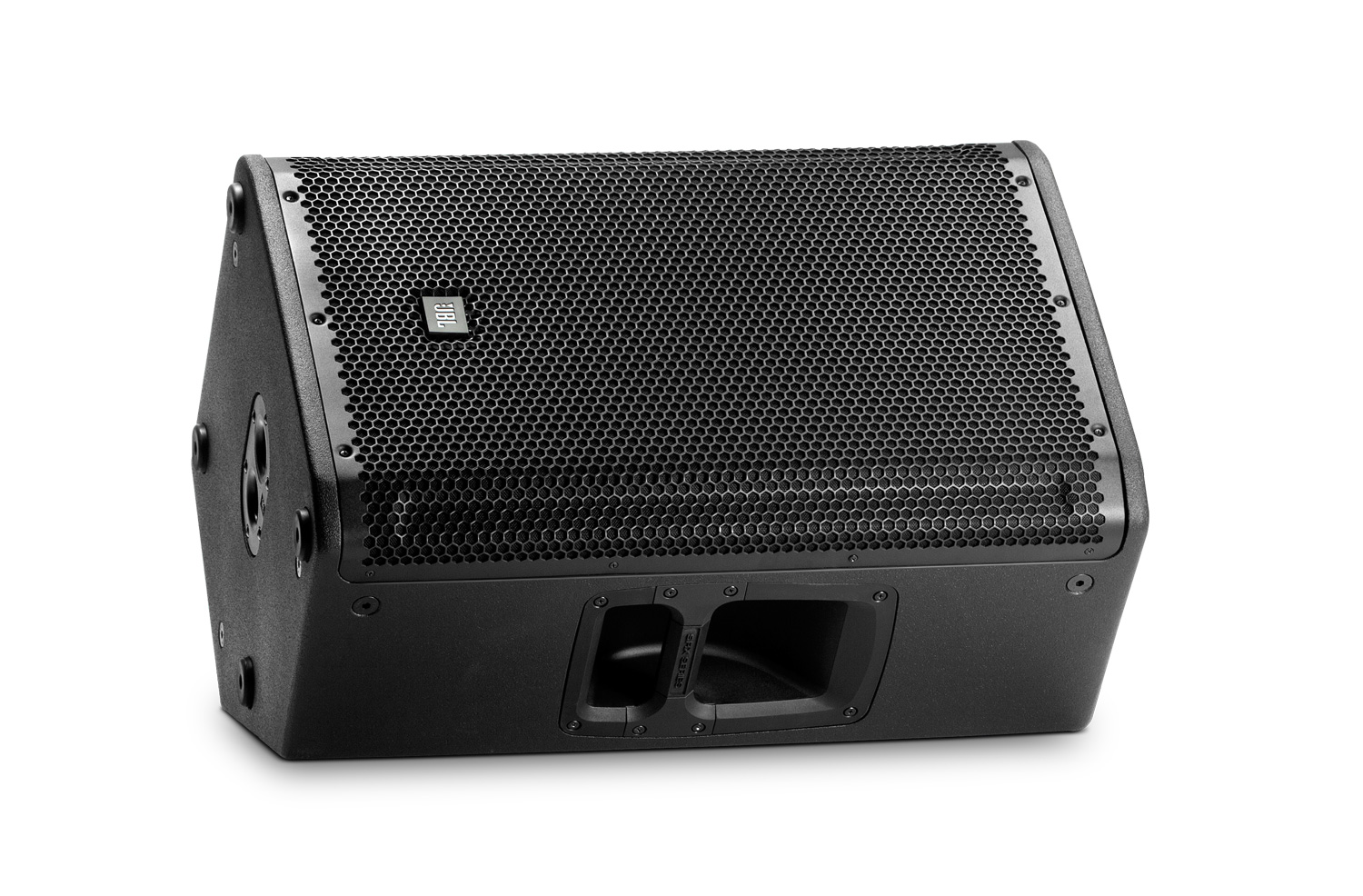

Monitor Angle 50°

Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points

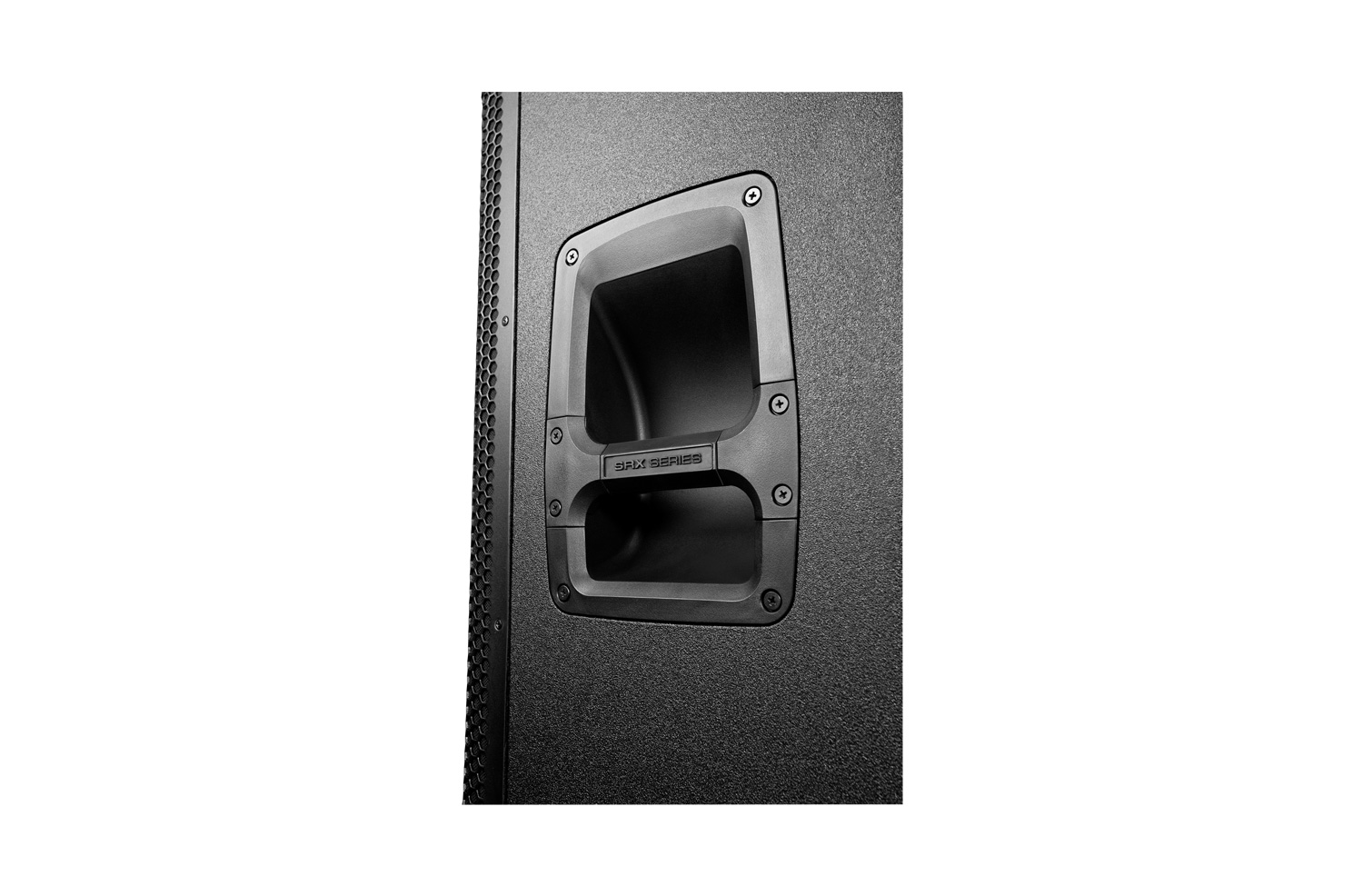

Handles 3

外觀顏色 Obsidian Duraflex? finish

網罩 Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing

尺寸（高 x 寬 x 厚） 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)

重量 55.0 lbs (24.9kg)

運輸重量 65 lbs (29.3kg)
